A fast Fourier transform (FFT) is an algorithm that computes the discrete Fourier transform (DFT) of a sequence, or its inverse (IDFT). Fourier analysis converts a signal from its original domain (often time or space) to a representation in the frequency domain and vice versa.
Considering this, what does an FFT tell you?
Use fft to observe the frequency content of the signal. The magnitude tells you the strength of the frequency components relative to other components. The phase tells you how all the frequency components align in time. Plot the magnitude and the phase components of the frequency spectrum of the signal.
Beside above, what does FFT mean in physics? Fast Fourier Transform (FFT)

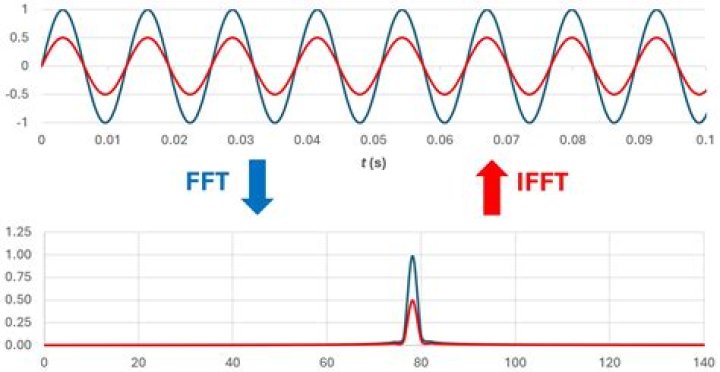

Taking the Fast Fourier Transform of a sinusoidal wave shows the frequency of that wave.
Similarly one may ask, what is FFT and its applications?
The Fast Fourier Transform (commonly abbreviated as FFT) is a fast algorithm for computing the discrete Fourier transform of a sequence. The Fourier transform has various properties which allow for simplification of ODEs and PDEs.
What is the need of FFT algorithm?
As the name implies, the Fast Fourier Transform (FFT) is an algorithm that determines Discrete Fourier Transform of an input significantly faster than computing it directly. In computer science lingo, the FFT reduces the number of computations needed for a problem of size N from O(N^2) to O(NlogN) .
Related Question Answers
Where is FFT used?
It converts a signal into individual spectral components and thereby provides frequency information about the signal. FFTs are used for fault analysis, quality control, and condition monitoring of machines or systems.What is the result of FFT?
You can find more information on the FFT functions used in the reference here, but at a high level the FFT takes as input a number of samples from a signal (the time domain representation) and produces as output the intensity at corresponding frequencies (the frequency domain representation).Why is FFT important?
The FFT is used to process data throughout today's highly networked, digital world. It allows computers to efficiently calculate the different frequency components in time-varying signals—and also to reconstruct such signals from a set of frequency components.How is FFT calculated?
The FFT operates by decomposing an N point time domain signal into N time domain signals each composed of a single point. The second step is to calculate the N frequency spectra corresponding to these N time domain signals. Lastly, the N spectra are synthesized into a single frequency spectrum. separate stages.How do I find FFT?
Y = fft( X ) computes the discrete Fourier transform (DFT) of X using a fast Fourier transform (FFT) algorithm.- If X is a vector, then fft(X) returns the Fourier transform of the vector.
- If X is a matrix, then fft(X) treats the columns of X as vectors and returns the Fourier transform of each column.
What is the difference between FFT and DFT?
The mathematical tool Discrete Fourier transform (DFT) is used to digitize the signals. The collection of various fast DFT computation techniques are known as the Fast Fourier transform (FFT).Difference between DFT and FFT – Comparison Table.
| DFT | FFT |
|---|---|
| The DFT has less speed than the FFT. | It is the faster version of DFT. |
What does FFT size mean?
frequency resolutionWhat is FFT phase?
The phase of a signal tells one nothing without the magnitude. FFT result bins within a rounding error of zero often have random phases. Whereas the angle of a non-zero length vector actually points somewhere. Note that a cosine and a sine of the same frequency are orthogonal. The phase tells you the ratio.What is FFT Matlab?
The Fourier transform is a mathematical formula that relates a signal sampled in time or space to the same signal sampled in frequency. The fft function in MATLAB® uses a fast Fourier transform algorithm to compute the Fourier transform of data.Why is FFT fast?
FFT algorithms are faster ways of doing DFT. It is a family of algorithms and not a single algorithm. So rather than working with big size Signals, we divide our signal into smaller ones, and perform DFT of these smaller signals. At the end we add all the smaller DFT to get actual DFT of the big signal.Who invented FFT?
The fast Fourier transform (FFT) algorithm was developed by Cooley and Tukey in 1965. It could reduce the computational complexity of discrete Fourier transform significantly from (O(N^2)) to (O(Nlog _2 {N})).Does FFT have to be power of 2?
It isn't actually true that FFT works only with powers of two. The original paper on the FFT is “An Algorithm for the Machine Calculation of Complex Fourier Series ” by Cooley and Tukey.What are the benefits of FFT in signal processing?
The fast Fourier transform (FFT) is a computationally efficient method of generating a Fourier transform. The main advantage of an FFT is speed, which it gets by decreasing the number of calculations needed to analyze a waveform.What are the advantages of FFT over DFT?
FFT helps in converting the time domain in frequency domain which makes the calculations easier as we always deal with various frequency bands in communication system another very big advantage is that it can convert the discrete data into a contionousdata type available at various frequencies.What is twiddle factor in DSP?
A twiddle factor, in fast Fourier transform (FFT) algorithms, is any of the trigonometric constant coefficients that are multiplied by the data in the course of the algorithm. This remains the term's most common meaning, but it may also be used for any data-independent multiplicative constant in an FFT.Why is it called FFT?
The reason the Fourier transform is so prevalent is an algorithm called the fast Fourier transform (FFT), devised in the mid-1960s, which made it practical to calculate Fourier transforms on the fly. Like the FFT, the new algorithm works on digital signals.How do you read a FFT plot?
You can generate an FFT (fast-Fourier-transform) plot by periodically collecting a large number of conversion samples from the output of an ADC. Typically, ADC manufacturers use a single-tone, full-scale analog input signal for the performance curves in product data sheets.How do you calculate FFT frequency?
Let X = fft(x) . Both x and X have length N . Suppose X has two peaks at n0 and N-n0 . Then the sinusoid frequency is f0 = fs*n0/N Hertz.- Replace all coefficients of the FFT with their square value (real^2+imag^2).
- Take the iFFT.
- Find the largest peak in the iFFT.
