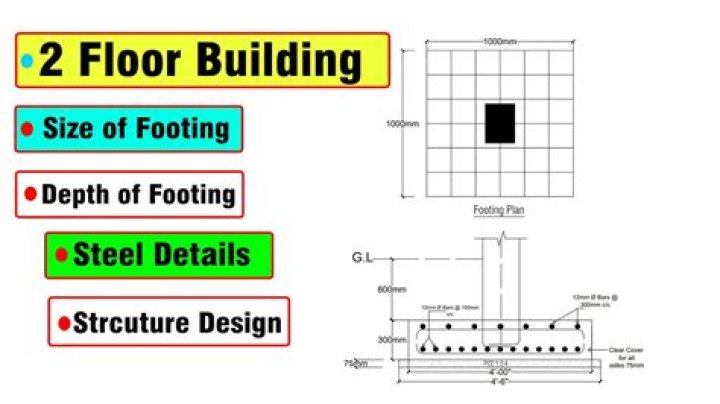

How to Calculate Footing Size
- Determine the width and length of thecement slab in inches.
- Divide the width by 12 to convert it to feet.
- Divide the length by 12 to convert it to feet.
- Determine the depth or thickness that is requiredfor the footing in inches.
- Multiply the width by the length and then by thedepth.
Accordingly, what is the size of a standard footing?
Concrete Footing Dimensions
| Minimum Width of Concrete or Masonry Footings(inches) | ||
|---|---|---|
| Load-Bearing Value of Soil (psf) | ||
| 4-Inch Brick Veneer Over Wood Frame or 8-InchHollow Concrete Masonry | ||
| 1-story | 19 | 15 |
| 2-story | 25 | 19 |
Furthermore, how deep should footings be? Footings need to be minimum 1m deep by600mm wide.
One may also ask, what are the factors that determine the size of foundation?
Mainly foundation depends on following factors:Types of soil. Bearing capacity of soil. Structural load.
- The superstructural load.
- The bearing capacity of the sub soil.
- The location of ground water table.
- Settlement.
- Stress overlap.
- The location of property line.
What are the types of footings?
Various Types of Footings for Your House
- Continuous Wall Footing: Footing which supports a long masonryor RCC wall is known as continuous wall footing.
- Isolated Footing: Footing which supports an individual columnis known as Isolated footing.
- Combined Footing:
- Strip Footing:
- Strap Footing:
- Raft Footing:
- Pile Footing.
Related Question Answers
What is the minimum width of a footing?
12 inchesDoes a concrete slab need footings?
While not a requirement, a concrete slabfoundation provides a solid, clean surface for your steel buildingand can help it last longer. Since the building will requireanchoring to minimize shifting, pouring a concrete slabgives you a chance to pour footings as well.How do I choose a foundation for a building?
The selection of a particular type of foundation is oftenbased on a number of factors, such as:- Adequate depth. The foundation must have an adequate depth toprevent frost damage.
- Bearing capacity failure.
- Settlement.
- Quality.
- Adequate strength.
- Adverse soil changes.
- Seismic forces.
What are the types of deep foundation?
The types of deep foundations in general use are asfollows:- Basements.
- Buoyancy rafts (hollow box foundations)
- Caissons.
- Cylinders.
- Shaft foundations.
- Pile foundations.
What is the purpose of foundation?
In new construction foundation functions areplanned in. A building foundation actually performs a numberof functions. The three most important are to bear the load of thebuilding, anchor it against natural forces such as earthquakes, andto isolate it from ground moisture.How do foundations work?
The donors have the final say on how foundation assetsare invested and spent; which charities to support; whether othersshare in foundation governance; and if so, how. A privatefoundation is empowered to work through almost any entity,public or private, to accomplish its charitableobjectives.What is Grillage foundation?
Grillage Foundation is a type offoundation often used at the base of a column. Itconsists of one, two or more tiers of steel beams superimposed on alayer of concrete, adjacent tiers being placed at right angles toeach other, while all tiers are encased in concrete.What is bearing capacity of soil?
In geotechnical engineering, bearing capacity isthe capacity of soil to support the loads applied to theground. The bearing capacity of soil is the maximum averagecontact pressure between the foundation and the soilwhich should not produce shear failure in thesoil.What are the factors that determine the type of a house?
